12V / 24V PWM Output LED Strip DMX Decoder 12 Channel Dip Switch Addressing

Shanghai Jibang Electronic Technology Co., Ltd.

12V / 24V PWM Output LED Strip DMX Decoder 12 Channel Dip Switch Addressing

Brand Name : JIBANG

Model Number : DE8012

Certification : CE ROHS

Place of Origin : SHANGHAI , CHINA

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 50000 pieces per week

Delivery Time : 7-10 work days

Packaging Details : 1pc / poly bag & inner box , 10pcs / carton

Input Signal : DMX512 (1990)

Input Voltage : CV 12-24V

Output Voltage : constant voltage 12 channel

Output Current : 4A/CH

Dimension : L250 x W130 x H24 mm

Weight : 720g

Warranty : 3 years

OEM : Accepted and OEM available

Contact Now

DMX512 decoder pwm output 12V 24V for LED strips 12 channel dipswitch addressing

Model : DE8012

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~12 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Features:

◆Meets DMX512/1990,with RJ45 interface and Pins.

◆256-levels brightness,full-color with driver controls

◆Output 12 channels,MAX 4A per channel.Total current is 48A. And 12 channels backup interface.

◆Can achieve asynchronous color changes effect under working with controller.

◆Cooperate with control system, can realize rich change effect.

◆Setting the DMX address freely

◆Modularizing and can be matched with different LED module neatly.

◆There are 3 x Max20A 4pin power in connectors, please apply according to LED load power requirement.

◆Custom-made.

Control channels: 12CH

Input:: DC12-24V

Output: 4A/CH

MAX Power:<1152W

Frequency: 5000HZ

Signal Input: DMX512/1990

The light gray level: 256

Protection Class: IP40

Gross Weight:: 720g

Product size: L250*W130*H24(mm)

Work Temp.: 0~70℃

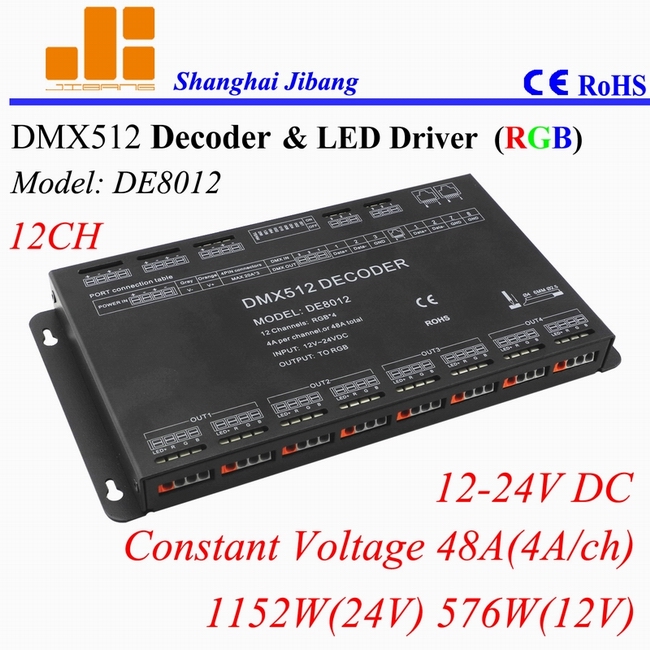

12V / 24V PWM Output LED Strip DMX Decoder 12 Channel Dip Switch Addressing

Product Size :

Size:L250*W130*H24mm

Weight :720g

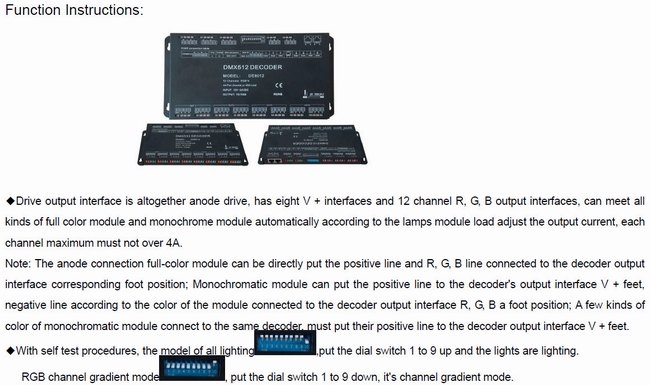

Product instructions:

12V / 24V PWM Output LED Strip DMX Decoder 12 Channel Dip Switch Addressing

Diagram:

12V / 24V PWM Output LED Strip DMX Decoder 12 Channel Dip Switch Addressing

Note :

DMX-512 control signal connection

◆ DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output RJ45 interface: PIN1 is signal positive, PIN2 is signal negative, PIN7.8 is signal ground, please corresponding polarity connection.

◆ DMX5000 output and DE8012's transmission lines can't be over 300 meters.

◆ DMX5000 each interface can with not more than 42 pieces of DE8012. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite connect the DMX lights.

◆ When contacting 32 pieces of DE8012, DMX signal must add a signal amplifier RE2000 . Cascade can't more than 4 PCS.

◆ At the end of the connection, we should connect a DMX signal finalizer ( Put down the code switch no.10 of DE8012 dial).

FAQ

Why choose us ?
(1)We are a manufacturer specializing in the R&D of LED Controllers over 8 years in Shanghai .
(2)All our products got the CE , ROHS certificates .
(3)Three years warranty for all products .
(4)OEM/ODM are available for us .

How could I pay for it ?
T/T , Western Union ,Paypal and Credit Card are available for payment .


How fast can I get these products ?
Usually , samples order within 2-3 working days. Batch order within 5-7working days .


What should we do if having problems after receiving your goods ?
Quality is our culture.Strictly inspected before shipping . Once you receivedissatisfied products , please contact us freely in time,we will do our best to deal with .
